Ultrasonic Wound Debridement Workstation- CareMaster H
A product designed for wound cleansing.
Intelligent wound cleaning precisely removes necrotic tissue.
Ultrasound-generated micro-airflow impact achieves deep cleaning.
Adjustable parameters and energy levels make wound cleaning procedures more standardized.
Ultrasonic wound debridement
- Selective removal of necrotic tissue while preserving healthy tissue
- Ultrasonic cavitation enables effective wound cleaning
- Helps disrupt bacterial biofilm and wound contaminants
- Reduced mechanical trauma for improved patient comfort
- Adjustable parameters for personalized treatment
- Debridement parameters
- Power Specification
| Parameter name | Value |
| Main unit output frequency | 15kHz～45kHz |
| Working frequency | 25kHz±1kHz |
| Auto sweep time | ≤5s |
| Maximum debridement liquid flow | ≥100mL/min |
| Effective ultrasonic output power | <50W |
| Temperature rise of debridement liquid | ≤10℃ |
| Maximum temperature of debridement liquid | ≤35℃ |
| The amplitude of debridement probe | ≥70um |
| Rated Voltage | a.c.100V-240V |
| Rated Frequency | 50Hz/60Hz |
| Input Power | 300VA |
| Fuse | 3.15A/250V |

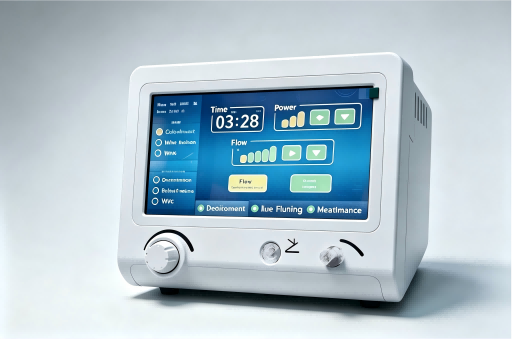

Large color touch screen
10-inch touchscreen, 65K-color LED backlight (1024×600)
- A visually appealing user interface makes it easier for doctors to understand equipment status and clarifies the treatment process.
- Real-time display of key treatment parameters improves the accuracy of doctors’ operations.
- Reduces the learning curve for medical staff; simple operation, just click to select as needed.

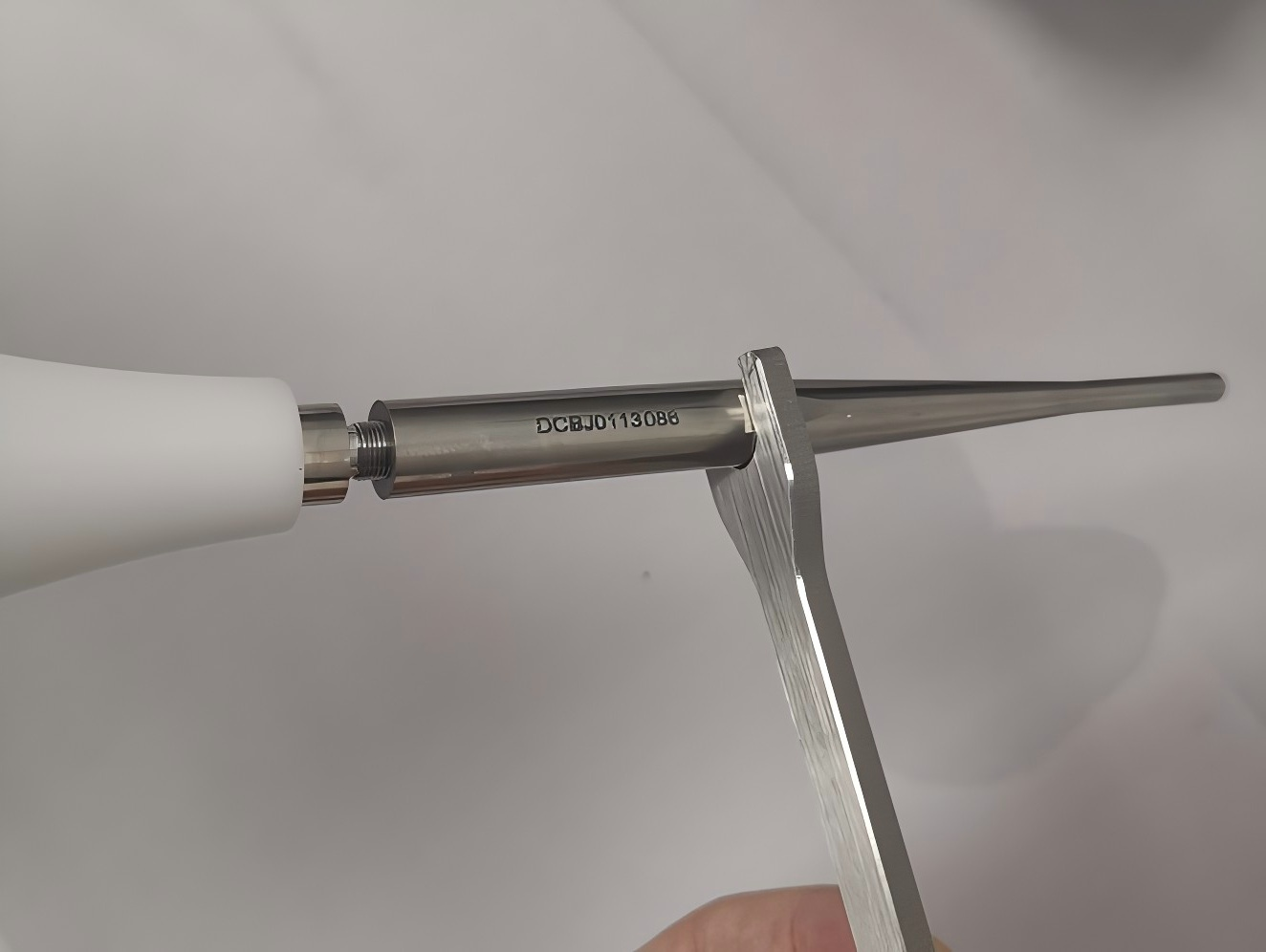

Independent, detachable debridement probe
- Replaceable debridement probe design reduces the risk of cross-infection and enhances treatment safety.
- Quick-connect probe design enables seamless workflow transitions and improves clinical efficiency.
- Independently replaceable probes lower maintenance costs and extend the equipment’s service life.
- Versatile probe design adapts to various wound types, expanding the scope of clinical application.
Related Products
PROMED offers a wide range of wound treatment equipment.
Multifunctional ultrasonic wound debridement—CareMaster
Multifunctional Ultrasonic Debridement System–CareMaster is an efficient wound care station with three major functions, including ultrasonic debridement, high-pressure irrigation, and negative pressure suction. It removes debris and contaminants quickly and thoroughly.
Purpose
High-pressure irrigation: cleaning wound surface;
Ultrasonic debridement: removing devitalized tissues and pathogenic micro-organisms;
Negative pressure sucking: removing irrigant and contaminated fluids.
Indications
Acute wounds: trauma, burn, postoperative wounds, etc;
Chronic wounds: diabetic foot ulcers, pressure ulcers, vascular ulcers, radiation ulcers, etc.
Features
Efficient
- Low-frequency ultrasound for better performance;
- Larger debridement tip amplitude for higher efficiency;
- Higher irrigation flow rate for faster clearance;
Safe
- Remove devitalized tissues in the meantime, keep healthy tissues intact;
- Detachable debridement handle for easier and faster sterilization;
- An independent and disposable irrigation tube to avoid cross-infection;
Convenient & Cost-saving
- Large size color touch screen;
- Reusable handpieces and probes.
- The reserved space between the device and the wall is at least 20cm.
- The ground should be flat and have sufficient intensity to ensure that there are no ropes,
thread ends, scattered hair, or other objects that may cause the device’s casters to be
entangled on the ground. - The operating environment of the device should reasonably avoid the interference of dust,
corrosive or flammable gases, mechanical vibration, large noise sources, and high power. - Do not get close to brush engines and electrical contact devices that are frequently turned on
and off. - Do not place near a heat source or a wind source. Avoid direct sunlight.
Please use the device in a clean environment;
Do not use the device in flammable, high-temperature, or humid environments;
To avoid electric shock, the power cord must be plugged into a three-core power socket with a
protective ground wire. Do not use a bad socket and equip the device with a stabilized voltage
supply if possible;
During treatment, the device should avoid vibration and be kept away from materials that are
corrosive, flammable, or explosive.
Please lock the caster when using the device.
