Negative Pressure Wound Therapy Systems
Source NPWT systems and compatible consumables through one coordinated product range. Explore NP-100, NP-600, and NP-800 systems, disposable NPWT canisters, and NPWT dressing kits. Request model-specific product information and documentation for your target market.
- Wound NPWT system
- Wound Vac canister
- NPWT dressing kits
A Coordinated NPWT Product Range for Professional Procurement
PROMED supports medical-device distributors, healthcare providers, and procurement teams sourcing negative pressure wound therapy systems and related consumables. Product selection should be based on the required device configuration, compatible consumables, destination market, and documentation requirements.
Choose Your NPWT System
A compact NPWT system for buyers evaluating a portable system configuration.
A professional NPWT system. Confirm the model configuration, compatible consumables, and available documentation before ordering.
A professional NPWT system with an instillation configuration option.
Complete the System with Configured Consumables
Select a disposable canister by device model, capacity, connector configuration, and packaging requirements. Do not assume that a canister is interchangeable across NPWT systems.

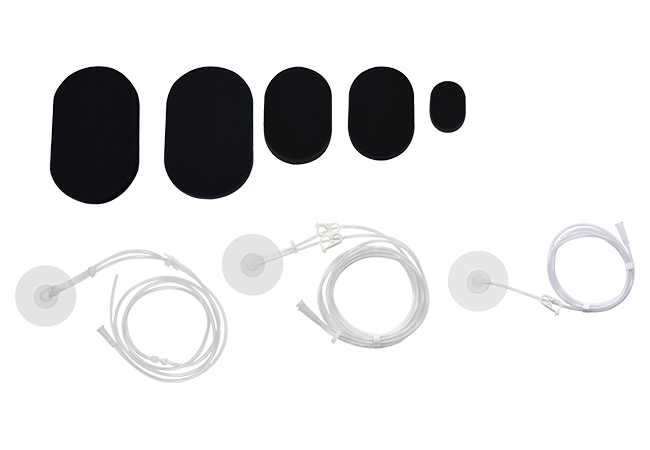

Select an NPWT dressing kit by device platform, tubing configuration, foam format and required dimensions. Confirm the applicable kit before placing an order.
Select a foam dressing kit by material, foam format, and required dimensions. Confirm the applicable kit before placing an order.
Complementary Wound Cleaning and Debridement Equipment
CareMaster is a separate wound-cleaning and debridement equipment range for professional procurement. It should be selected independently, with its own configuration, consumables, and documentation requirements.
CareMaster E including ultrasonic debridement, high-pressure irrigation, and negative pressure suction.
Why PROMED?
You can buy NPWT machines, VAC canisters, and foam dressing kits from us.
Located in China’s innovation capital, it is easier to access the most cutting-edge technology and always keep up with the international advanced level.
Lower MOQ requirements, lessing risk, and provide a better option for your startup business.
We provide 1-2 years warranty service to our customers. Please feel free to contact us for more information about products.
Model-Specific Documentation and Registration Support
PROMED is an authorized medical-device distributor and supplier. Product information and supporting documentation are provided through authorized supply partners. Model-specific certification and registration-support materials can be assessed according to product configuration and destination-market requirements. Document availability and local regulatory acceptance must be confirmed before purchase or submission.
Warnings!
- Pressure Ulcers
- Diabetic/Neuropathic Ulcers
- Venous Insufficiency Ulcers
- Traumatic Wounds
- Post-operative Wounds
- Skin Flaps/Grafts
- Explored Fistulas
- …
- NPWT system Technical Parameter Comparison Model Configuration
- CareMaster E G H Technical Parameter Comparison Model Configuration
| Model | NP-800 | NP-600 | NP-200/NP-100 |
| Power Supply | AC 100V-240V, 50/60Hz Input power ≤120VA, Input voltage AC 15V |
AC 100V-240V, 50/60Hz Input power ≤120VA, Input voltage AC 15V |
AC 100V-240V, 50/60Hz, ≤60VA |
| Battery | Rechargeable lithium-ion battery: 5200mAh, 11.2V | Rechargeable lithium-ion battery: 5200mAh, 11.2V | Rechargeable lithium-ion battery: 5200mAh, 7.4V |
| Therapy Modes | Cleaning Drainage Mode(Mode D, E, F) & Negative Pressure Drainage Mode (Continuous, Intermittent, or Dynamic) | Negative Pressure Drainage Mode (Continuous, Intermittent, or Dynamic) | Continuous, Intermittent |
| Screen | 7” color touch screen, 65K, LED-backlit, resolution 1024 x 600 | 7” color touch screen, 65K, LED-backlit, resolution 1024 x 600 | 2″ Color LCD Screen, LED-backlit |
| Lock Screen | Yes | Yes | Yes |
| Auto Lock Screen | Yes, display lock out after 10mintues | Yes, display lock out after 10mintues | No |
| Canister | 500ml/1000ml | 500ml/1000ml | 300ml |
| Negative Pressure Range | 0~-500mmHg For Cleaning mode, Continuous, and Intermittent modes: 0~-500mmHg For the Dynamic mode: -25~-200mmHg Accuracy of negative pressure: The error is ±5mmHg for 0~-100mmHg (including -100mmHg), and ±5% for -100~-500mmHg. Regulation step: 25mmHg. |
For Continuous, and Intermittent modes: 0~-500mmHg For the Dynamic mode: -25~-200mmHg Accuracy of negative pressure: The error is ±5mmHg for 0~-100mmHg (including -100mmHg), and ±5% for -100~-500mmHg. Regulation step: 25mmHg. |
-50~-200mmHg; Accuracy of negative pressure: The error is ±10mmHg for -50~-100mmHg (including -100mmHg), and ±10% for -100~-200mmHg. Regulation step: 10mmHg. |
| Pumping Speed | >8L/min (when working at full power) | >8L/min (when working at full power) | >1L/min (when working at full power) |
| Drainage Intensity | The drainage intensity can be set to Low, Medium and High levels. | The drainage intensity can be set to Low, Medium and High levels. | Can not be adjusted |
| Noise | <55dB(A) | <55dB(A) | <55dB(A) |
| Battery Performance | At least 6h; To fully charge the battery, 6h is required; Charging/discharging cycles: ≥300 |
At least 6h; To fully charge the battery, 6h is required; Charging/discharging cycles: ≥300 |
At least 12h; To fully charge the battery, 6h is required; Charging/discharging cycles: ≥300 |
| Cycle lifes of the main unit | 3000h | 3000h | 3000h |
| GPRS | NO | NO | YES |
| Bluetooth | Yes, for mobile app monitor and control | Yes, for mobile app monitor and control | NP-200: YES; |
| Size | 200 × 220 × 275mm (L×W×H); | 200 × 220 × 275mm (L×W×H); | 60 × 130 × 160mm (L×W×H); |
| Weight | N.W: 3.7kg; G.W: 6.1kg. |
N.W: 3.7kg; G.W: 6.1kg. |
N.W: 0.6kg; G.W: 1.0kg. |
| Protection functions | Overflow protection; Lock screen (auto); High pressure alarm; Low pressure alarm; Canister full alarm; Low battery alarm; Tubing blockage alarm | Overflow protection; Lock screen (auto); High pressure alarm; Low pressure alarm; Canister full alarm; Low battery alarm; Tubing blockage alarm | Overflow protection; Lock screen (manual); High pressure alarm; Low pressure alarm; Canister full alarm; Low battery alarm |
| Operation Environment | Normal operating temperature: 5°C~40°C; Normal operating humidity: 10%~80%; Atmospheric pressure: 700hPa~1060hPa; Power supply: voltage: AC 100V~240V; frequency: 50/60Hz; The environment should, whenever possible, be free from dust, mechanical vibration, sources of big noise, high-temperature area and power interference; |
Normal operating temperature: 5°C~40°C; Normal operating humidity: 10%~80%; Atmospheric pressure: 700hPa~1060hPa; Power supply: voltage: AC 100V~240V; frequency: 50/60Hz; The environment should, whenever possible, be free from dust, mechanical vibration, sources of big noise, high-temperature area and power interference; |
Normal operating temperature: 5°C~40°C; Normal operating humidity: 10%~80%; Atmospheric pressure: 700hPa~1060hPa; Power supply: voltage: AC 100V~240V; frequency: 50/60Hz; The environment should, whenever possible, be free from dust, mechanical vibration, sources of big noise, high-temperature area and power interference; |
| Parameter | CareMaster-E | CareMaster-G | CareMaster-H |
|---|---|---|---|
| Standard configuration | Ultrasonic debridement, high-pressure flushing and negative-pressure suction | Ultrasonic debridement and high-pressure flushing | Ultrasonic debridement |
| Ultrasonic debridement | Standard | Standard | Standard |
| High-pressure flushing | Standard | Standard | Optional |
| Negative-pressure suction | Standard | Optional | Optional |
| Negative-pressure trolley | Standard | Optional | Optional |
| Foot switch | Double foot switches | Double foot switches | Single foot switch |
| Recommended selection | Full-function wound-cleaning configuration | Debridement and flushing configuration | Ultrasonic debridement-focused configuration |
Technical Parameters
| Parameter | CareMaster-E | CareMaster-G | CareMaster-H |
|---|---|---|---|
| Rated voltage | a.c. 100-240 V | a.c. 100-240 V | a.c. 100-240 V |
| Rated frequency | 50/60 Hz | 50/60 Hz | 50/60 Hz |
| Input power | 300 VA | 300 VA | 300 VA |
| Display | 10-inch colour touchscreen, 1024 × 600 | 10-inch colour touchscreen, 1024 × 600 | 10-inch colour touchscreen, 1024 × 600 |
| Main unit output frequency | 15-45 kHz | 15-45 kHz | 15-45 kHz |
| Working frequency | 25 kHz ± 1 kHz | 25 kHz ± 1 kHz | 25 kHz ± 1 kHz |
| Effective ultrasonic output power | < 50 W | < 50 W | < 50 W |
| Maximum debridement liquid flow | ≥ 100 mL/min | ≥ 100 mL/min | ≥ 100 mL/min |
| Debridement probe amplitude | ≥ 70 μm | ≥ 70 μm | ≥ 70 μm |
| Maximum debridement liquid temperature | ≤ 35 °C | ≤ 35 °C | ≤ 35 °C |
| High-pressure flushing flow | ≥ 400 mL/min | ≥ 400 mL/min | Confirm if flushing option is included |
| Maximum flushing pressure | 0.6 ± 0.05 MPa | 0.6 ± 0.05 MPa | Confirm if flushing option is included |
| Extreme negative pressure | ≥ 0.08 MPa | Confirm if suction option is included | Confirm if suction option is included |
| Air pumping rate | ≥ 20 L/min | Confirm if suction option is included | Confirm if suction option is included |
| Storage canister capacity | ≥ 2 L | Confirm if suction option is included | Confirm if suction option is included |
| Noise | ≤ 70 dB(A) | ≤ 70 dB(A) | ≤ 70 dB(A) |
| Electrical safety classification | Class I, Type B applied part | Class I, Type B applied part | Class I, Type B applied part |
| Foot switch protection | IP68 | IP68 | IP68 |
| Maximum continuous loading time | 99 min | 99 min | 99 min |
| Net weight | 8.6 kg | 8.6 kg | 7.3 kg |
| Gross weight | 15 kg | 14.5 kg | 12.5 kg |
| Main unit package size | 470 × 455 × 390 mm | Confirm for supplied configuration | Confirm for supplied configuration |
Configuration Note: Optional functions, accessories, trolley configuration and packaging must be confirmed against the final quotation and supplied model configuration. The device is intended for trained healthcare professionals and must be used according to the current Instructions for Use.
PROMED Other Products
Quick Guide to Operation
Please let a trained doctor or nurse operate the device.
- Pre-treat the wounds by doctors/nurses;
- Debride and clean the wounds.
- Evaluate the size of wounds.
- Cut the foam to size and put it on the wound,
- Cut the film (if necessary) and cover the wound and the foam
- Cut a small hole in the film, and connect it with the tubing
- Connect the tubing to the NPWT device, and make sure the connection is ok.
- Set the treatment parameters, then click Start.
- Finally, monitor the status of the wound and device.
The above is a brief operating instruction. Please follow the instruction manual for specific steps.
Yes. Please provide the required device model, canister capacity, dressing-kit requirement, quantity and destination market. Compatibility is confirmed against the requested configuration.
Compatibility depends on the NPWT device model, interface and configured consumable range. Share your device requirement before ordering; do not select only by appearance or capacity.
NP-800 can be discussed as an NPWT configuration with an instillation option. Please request current model-specific information and documentation before purchase.
We can assess and provide available product documentation for your target market, subject to the specific model, destination-market requirements and document availability. Regulatory approval is determined by the competent local authority.
