Community Blood Pressure Kiosk LLK-S693L
LLK-S693L Community Self-Service Blood Pressure Kiosk: A blood pressure monitor designed for most people, allowing users to perform self-measurements and get their results by following the instructions displayed on the device’s screen.
Features
- Android and 10.2-inch LCD Touch Screen
- Medical-grade arm-cuff electronic blood pressure monitor: Blood Pressure, Heart Rate
- Start Mode: QR Scan, LCD Touch Screen, ThaiID Voice prompts, and Multi-language support
- Automatic thermal printing of measurement results, query, and Storage of History Data
- Data Transfer : Rs232 , USB , RJ45, Bluetooth , WIFI ,
- Cloud Server: HIS, EMR, Hospital System
Medical-grade arm-cuff electronic blood pressure monitor
8-inch screen, real-time voice broadcasting of status and results, and support for integration with the HIS hospital system.
Large LED Screen and Real-time Voice clear WHO Indicator: Senior-Friendly
Automatic Measurement, Lightweight, and Portable

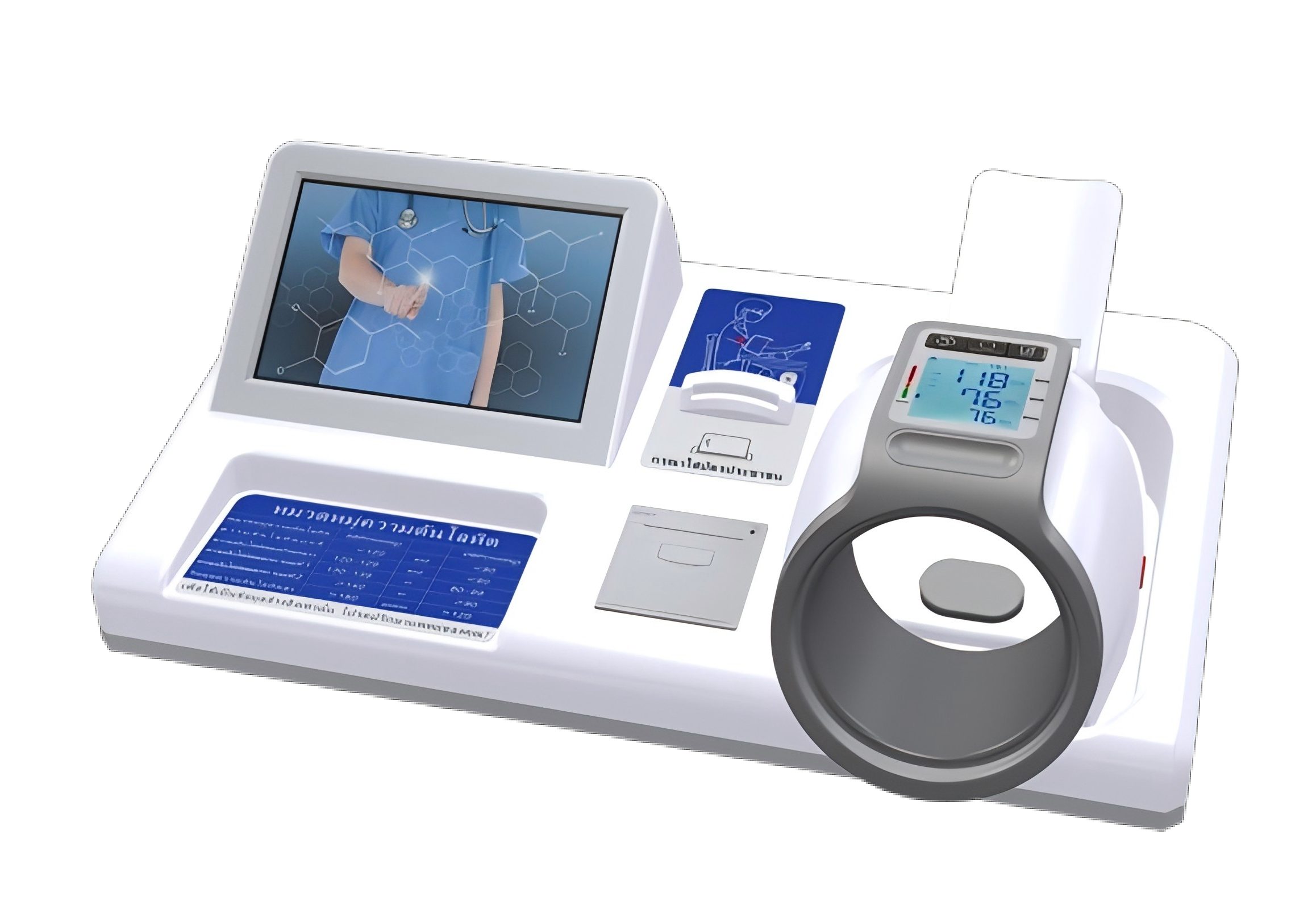

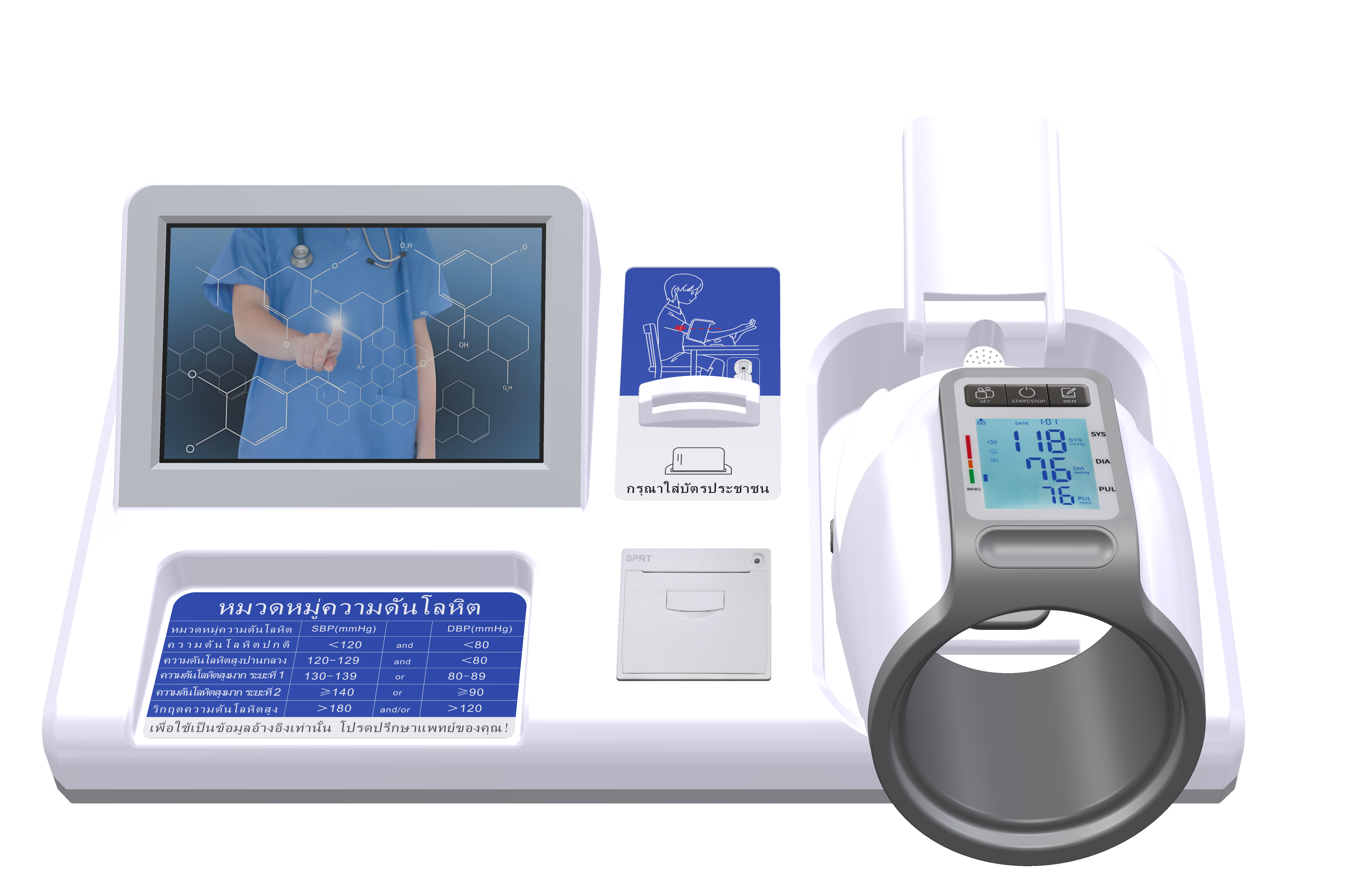

The self-service blood pressure kiosk includes:
10.2-inch LCD Touch Screen: When self-monitoring blood pressure, users can follow the on-screen instructions, reducing the need for medical personnel assistance.
Blood Pressure Monitor: Primarily designed for measuring adult blood pressure. Please note that blood pressure readings for pregnant women, children, and individuals with chronic conditions may differ from standard norms; specific guidance should be sought from a physician.
Thermal Printer: Upon completion of the measurement, the device prints the blood pressure results, thereby eliminating the need for additional record-keeping tasks such as taking photos or manually transcribing data.
Blood Pressure Classification Chart: Based on international guidelines for hypertension classification, this feature allows users to immediately determine whether their blood pressure is abnormal, without the need to consult a physician or perform an external search.

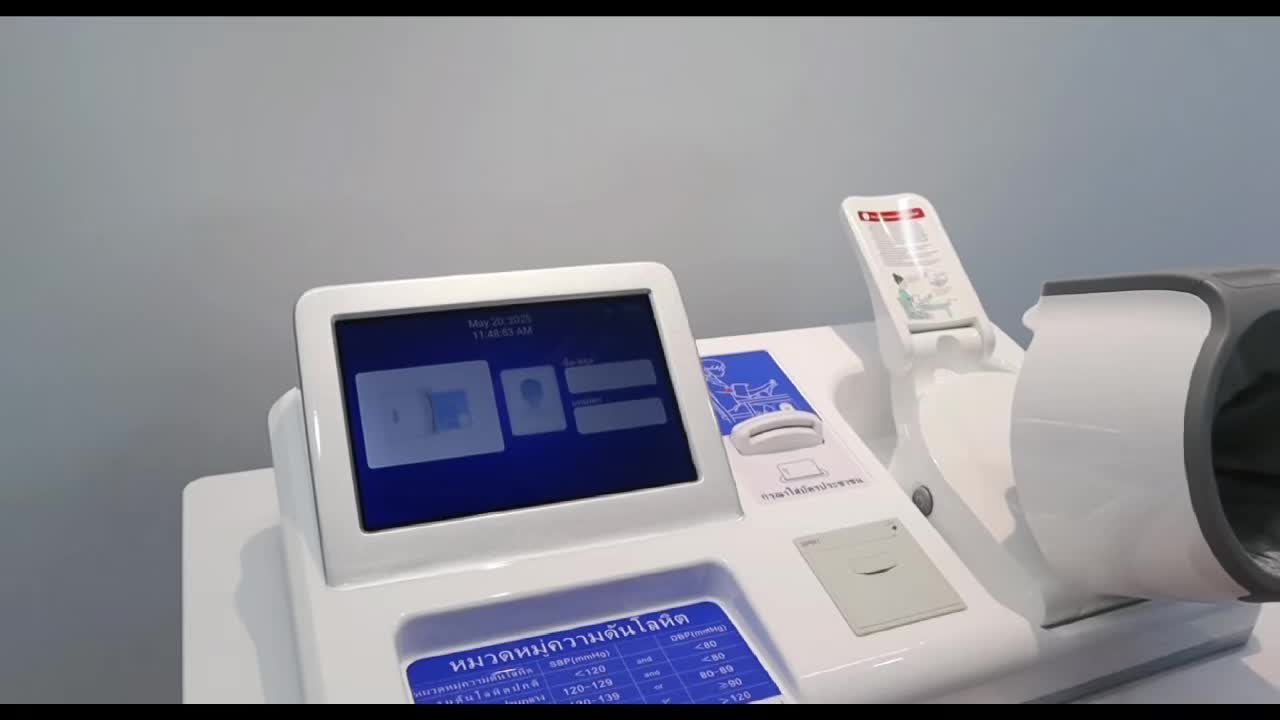

Self-Service Blood Pressure Kiosk User Guide

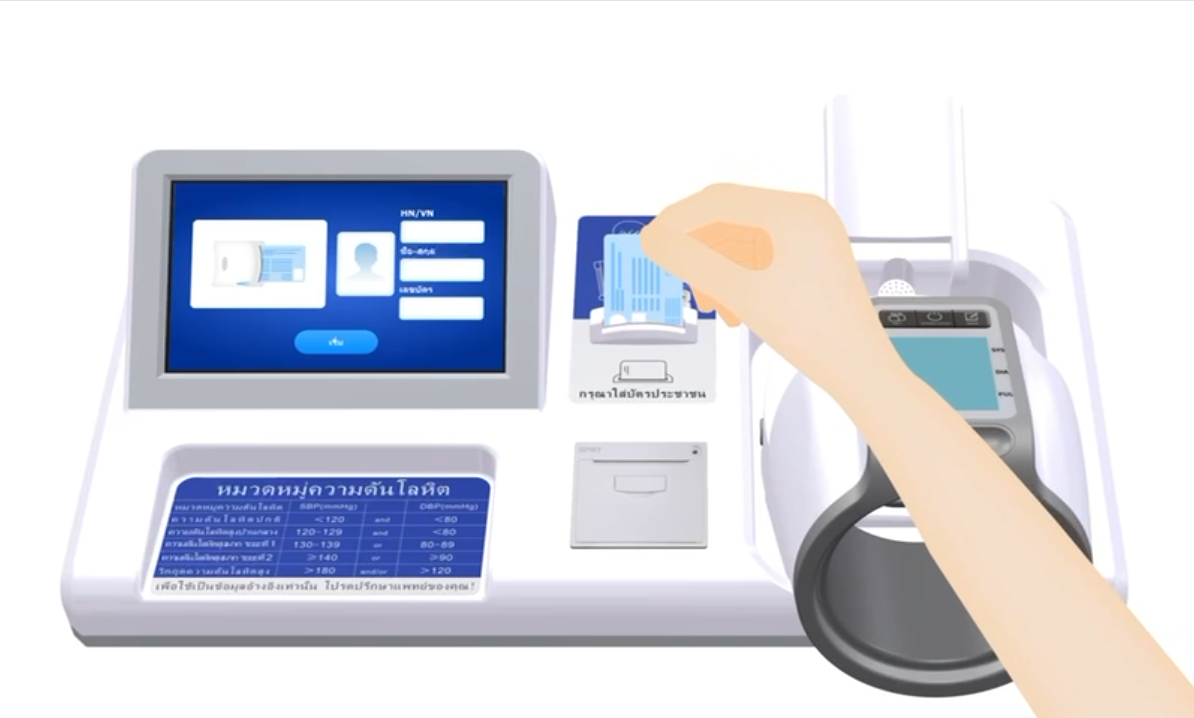

- Insert your ID card to identify and retrieve your personal information.

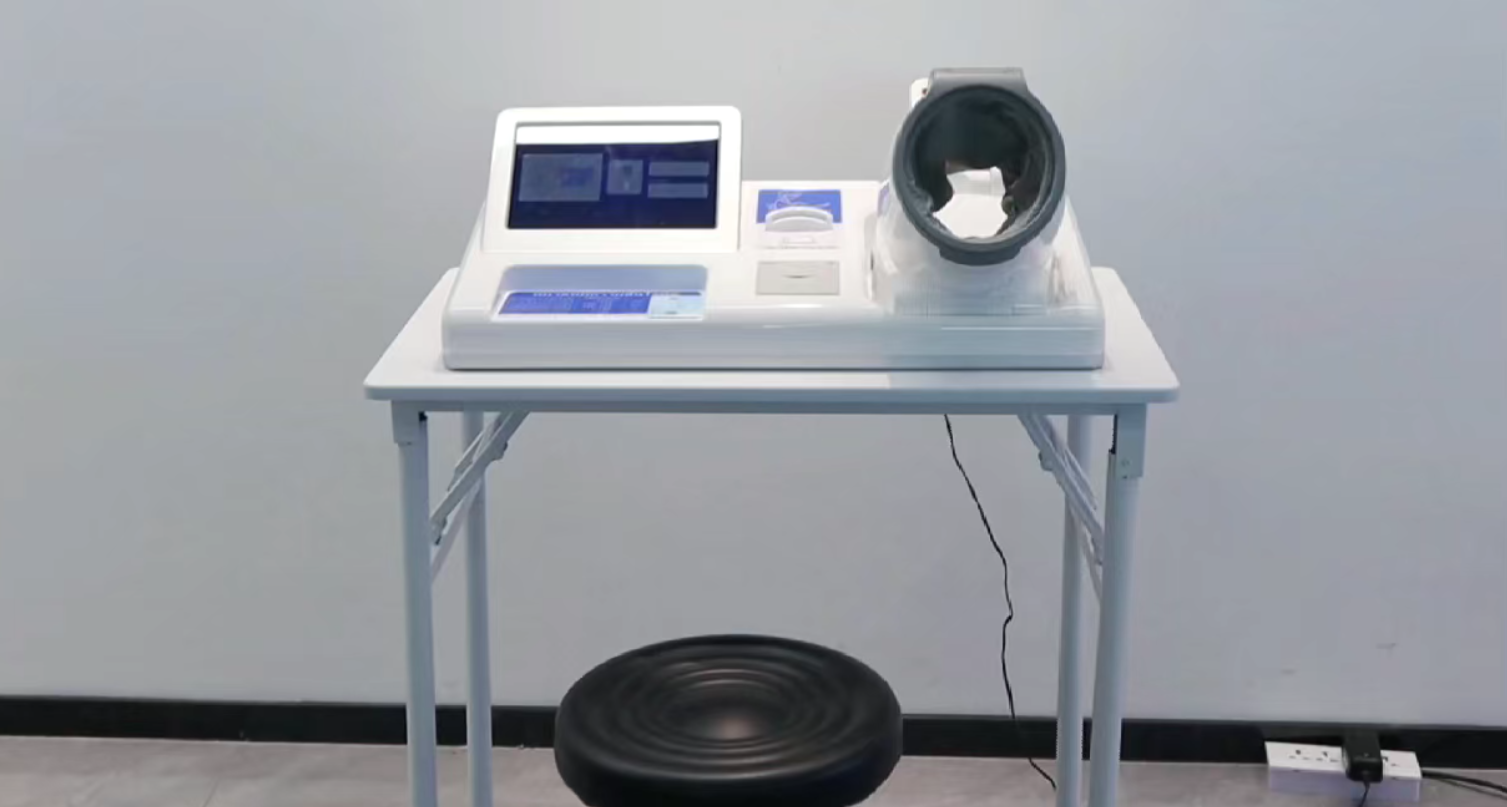

- Follow the voice and on-screen video instructions to adjust your sitting posture and insert your arm into the blood pressure monitor’s cuff sleeve.
- Remain still once the measurement begins; wait for the screen to indicate that the measurement is complete before removing your arm.
- Wait for the measurement results to print (printing takes 3–5 seconds).
Specification:
|
Technical Parameters |
||
| Operation System | Operation System | Android 11 CPU: 2+12 G |
| Language | Language | English , French , Spanish , Portuguese , Arabic , Thai , Russian , Bulgarian,
Romanian, Vietnamese, Albanian, German, Greek, Croatian, Italian |
| Material | BS —- Easy to move and environmentally friendly | A Weight—- 7KG |
| Electronic Blood
Pressure Monitor |
Brand | PROMED |
| Measuring Range: 0mmHg-295mmHg (0.0kpa-39.33kpa)
Accuracy: +0.3mmHg |
||
| Arm Circumference: 24cm-42cm | ||
| Measurement method | Oscillometric method | |
| Korotkoff Sonic Method | ||
| Heart Rate: 40-199 Times/Min Accuracy:±5% | ||
| Arm cuff—- Self-replacement of arm sleeves | ||
| HIS, EMR, all types of hospital systems, or third-party databases | ||
| Data Transfer | Wireless data transmission | WIFI, Bluetooth, Cloud Server(API) |
| Wired data transmission | Rs232, RJ45 Lan, USB | |
| Data query
and storage |
Query History data in the User Menu | |
| Store more than 1 million data points, automatically generate EXCEL tables, and support U disk export | ||
| Start Mode
(Optional) |
QR Scan, Thai ID, LCD Touch Screen, NFC Card | |
|
Advertising |
10.2inch LCD Touch Screen to Voice prompts, Display the video and Images | |
| Video | 3GP,MP4,RMVB,AVI | |
| Image | PNG, JPG, JPEG | |
| Ticket | Built -in Thermal Printer | Date, time, Name, Gender, ID No., Diastolic Blood Pressure, Systolic Blood Pressure, Heart Rate, Standard Range, Slogan |
| Working Voltage | AC100-240V 50/60HZ 6W | |
Just contact us:
PROMED HEALTHCARE LIMITED
WhatsApp: +86 13922837988
Tel:+86 755-27210553
Email: info@llkmedical.com
Web: www.llkmedical.com
Package Detail：
Unit size: 660mm*360mm*208mm
Carton size: 740*330*450mm
G.W 18kg/units 1 unit/Carton box
- The arm tube adopts ergonomic design,which can move up and down by 10 degrees, adaptingto arms of different lengths, as shown in Figure l,allowing the user to The user measures bloodpressure in a comfortable position. move up anddown 10 degree.
- Put the right hand into the arm barrel, and the elbow should be placed at theposition of the elbow contact switch, as shown in Figure 2
- When the elbow is not placed at the position of the elbow contact switch, “pleaseplace the elbow on the elbow contact switch, arm Relax” prompt icon will flash (Figure 3),when the elbow is correctly placed on the position of the elbow contact switch, theprompt “Pay attention to the position of the elbow” will disappear (Figure 4), sit in thecorrect measurement posture, and prepare to start measuring blood pressure.Please place your elbow on the elbow contact switch, arm relaxed/measured, do notmove your arm
